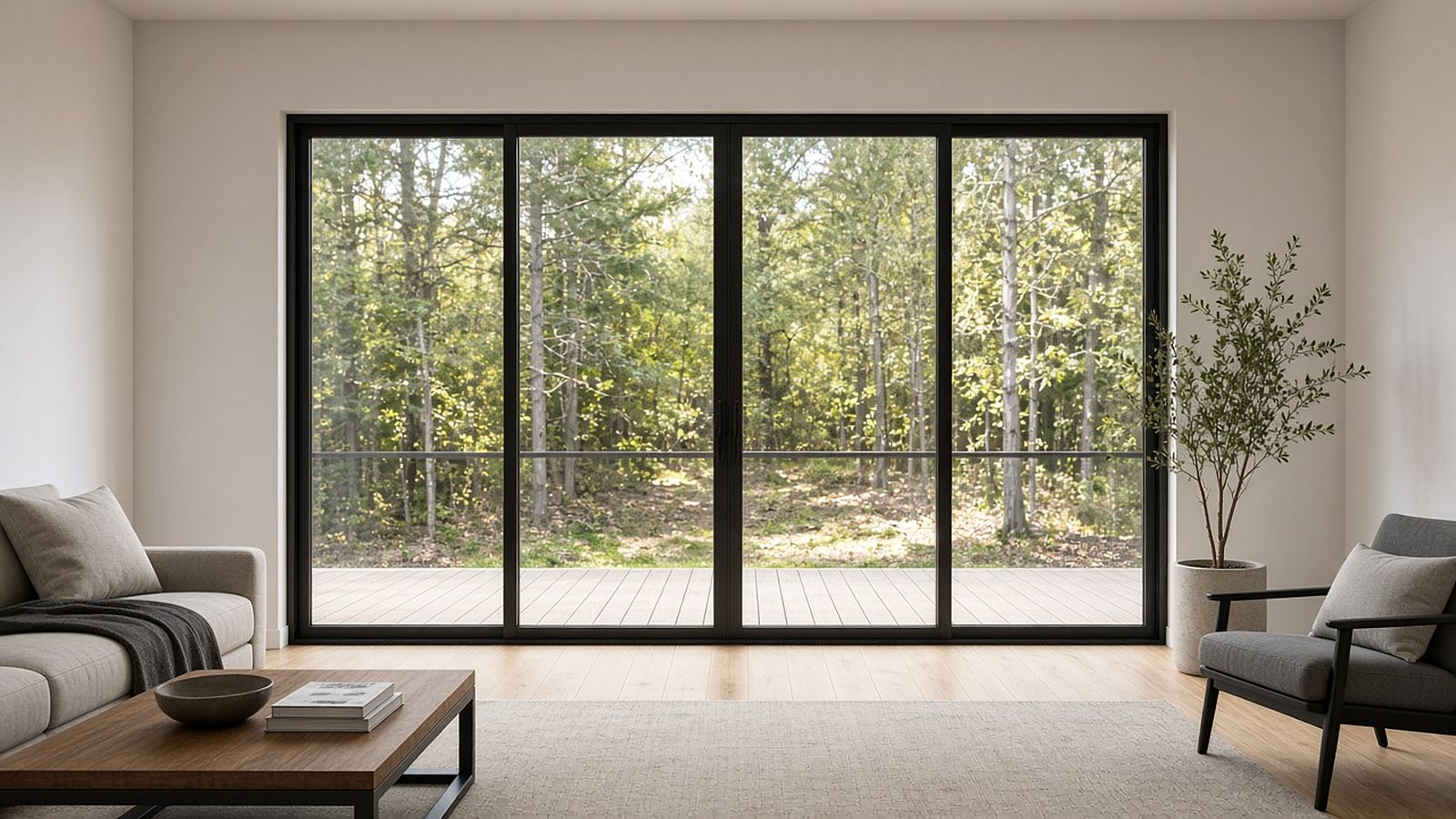

Black-frame sliding glass door opening to a wooded yard

02 — Sliding & folding

Open the whole wall.

Sliding patio doors, multi-panel folding doors, and hinged patio doors in thermally broken aluminum.

Request a quote →Download catalog ↓

A / Systems

Large openings, slim lines.

Sliding patio door

Panoramic Sliding Door

A slim 3/4 in. interlock keeps the frame out of the view. Panels glide on stainless steel tracks with concealed drainage and multi-point locks. A motorized option is available for the largest panels.

Max panel: 118 × 137 3/4 in.
Max panel weight: 1,100 lb manual / motorized option
Track: Stainless steel sill track
Locking: Multi-point, smart-lock option

Folding

Folding Patio Door

Three to ten panels fold in or out and stack to one side or split at the center, opening up to 39 ft. Soft-close magnetic stops, concealed rollers, and an optional low-profile sill keep the threshold clean.

Panels: 3 to 10
Opening width: Up to 39 ft
Max panel: 47 1/4 × 118 in. · 330 lb
Frame depth: 2 15/16 in.

Sliding

Standard Sliding Patio Door

Everyday sliders with flush frames and multiple seals. Rollers and locks are ROTO, handles are HOPPE, and integrated-screen versions are available.

Hardware: ROTO rollers and locks, HOPPE handle
Roller rating: 265 lb per panel
Thermal break: 1 3/16 in. (select models)
Options: Reinforced meeting stiles

Hinged

Hinged Patio Doors

Aluminum hinged doors with flush frame and leaf, narrow stiles, continuous seals, and multi-point locks. Available inswing or outswing, with a low-profile sill and smart-lock options.

Swing: Inswing or outswing
Locking: Multi-point
Closers: Concealed closer compatible
Sill: Low-profile option

Specifications are nominal published values. Performance ratings and certification documents vary by product and are provided per project with submittals.

Next step

Have a set of plans?

Send the drawings or your window and door schedule. We'll return a priced package with options to review.

Get a quote →How we work
